Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine

Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine
Model Number: HGS500N
Brand: HAGSIN
Place of Origin: CHINA
Use: For the wrapping of core wire
Packaging: Standard Export Packaging
Minimum Order Quantity: 1 set
FOB Port: FOB Shenzhen / Shanghai
Delivery Time: 20 - 35 days
Payment Methods: T/T / Western Union / Sight L/C
Supply Capacity: 20 - 30 sets/month
 Chat  View Contact Details
Product Description

Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine “Taping Machine” Application】:

It is applied to wrap twisted wire, parallel wire, flat wire for high frequency data cables (such as HDMI, DP, ATA, SATA , SAS, etc), with double layers/single layer continuously center wind wrapping , hot melt warming and take-up wire in one time.



Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine “Taping Machine” Equipment Feature】:

1.Used abroad: It is applied to wrap kind of twisted wire, parallel wire, flat wire with double layers/single layer continuously center wind wrapping. It is especially suitable for producing high frequency data cables.



2. Wrapping tension is stable, adopt magnetic powder clutch to control it, and automatic tension trace instrument. Wrapping tension always keep constant from start to end.



3. Wrapping pitch accurate: setting wrapping overlapping coefficient by Screen Touch Graphic Operation Terminal, and with PLC control line speed and running.



4. Excellent wire traversing: adopt shaft traversing structure for take-up wire traversing, setting traversing pitch and distance at will.



5. High quality: Produce HDMI,DP, ATA,SATA,SAS, etc, Percent of pass 100%.



6. The line energy conservation and high efficient, the productive efficiency more 2.5 times than traditional wrapping machine.



Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine “Taping Machine” Main Technical Parameter】:



Wrapping Machine Model

HGS-500 Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine

Core-wire Specification

AWG32-AWG20

Wrapping Materiel

Aluminum-foil, Mylar, Cotton paper band, Transparent band, Mica band, Teflon band, etc

Max Rotation

2000RPM

Max Line Speed

28m/min

Power

1HP motor with inverter, wrapping drum coordinates with pull off motor

Wrapping Tension

Adopt magnetic powder clutch to control the wrapping tension, automatic tension trace instrument. Wrapping tension always keep constant from start to end.

Take-up Tension

Take-up tension keeps constant from start to end.

Traversing Type

Traversing wire by moving shaft to except the wire hearted by pushing and pulling force. Traversing pitch and distance can be setting at will according with wire specification

Pay-off Type

Linear guide slide rail+ clump weight tension type active pay-off stand, with inverter adjust speed, wire break off protecting function.

Machinery Size

4150*1400*1900


Technical data are subject to change without any prior notice.
If more information or inquires, please feel free to click "Contact Us" or send us email: sales@hagsin.com

Bigger Image

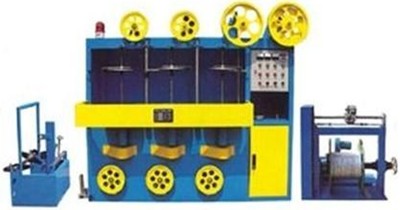

Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine

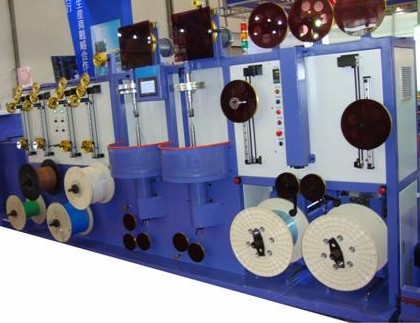

Numerical Control Type Dual Layers/Single Layer Vertical Wrapping Machine
