【Chemical Foaming Extrusion Line “Wire Extruder” Application】：
Be suitable for HDMI, DVI, IEEE1394, CAT5, CAT6 and other two-layer co-extruded core wire or solid core wire chemical foaming extrusion.
【Chemical Foaming Extrusion Equipment “Wire Extruder” Technique Feature】：
1. The production of cable products that meet international or national standards. Application materials: FM-PE, PE, PP, PVC, SR-PVC. Machine Speed: foam cored wire (Max) 400m/min, solid-core wire (Max) 600m/min.
2. Quality control: with a diameter and the capacitive sensing device, the outer diameter full control products, foaming degree of processing parameters.
3. Head: Matching European imports or domestic high-quality double nose to achieve inner and outer precision extrusion.
4. Electric control: Imported Inverters + PLC touch screen control.

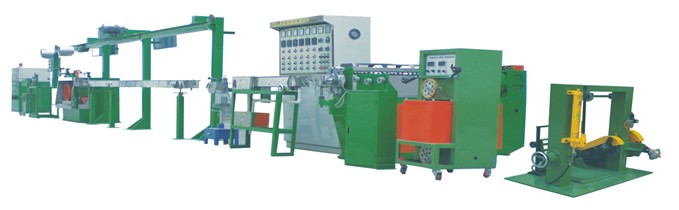

【Chemical Foaming Extrusion Equipment “Cable Extruder” Equipment Consists】：

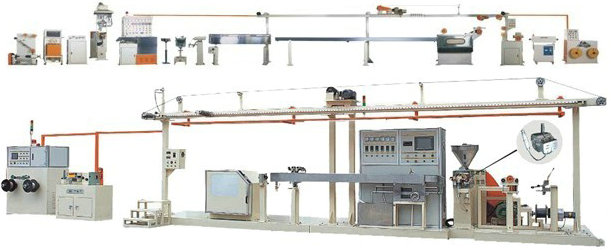

Φ400-φ500 initiative by the pay-off machine, the whole collimator, copper preheater, φ25 auxiliary, φ30 host, electrical main control cabinets, front-end mobile sink temperature, laser diameter measuring instrument, 10-meter single-storey rear section sink, Static water tester (installed in the cooling tank inside), dual-active traction machine, 12 meters inclined wire storage racks, high-frequency spark machine, φ500-φ630 biaxial-up Machine etc.
【Chemical Foaming Extrusion Equipment “Wire Extruder” Technique Specifications】：
|
Machinery type
|
HGS-30+25
|
HGS-40+30
|
HGS-50+35
|
|
Pay-off line type
|
Initiative pay-off
|
Initiative pay-off
|
Initiative pay-off
|
|
Pay-off line axis
|
PN300-500
|
PN300-500
|
PN300-500
|
|
Screw diameter
|
φ30+25(Auxiliary)
|
φ40+30(Auxiliary)
|
φ50+35(Auxiliary)
|
|
Screw scale length/diameter
|
25：1
|
25：1
|
25：1
|
|
Extrusions capacity kg/h
|
15
|
25
|
50
|
|
Main machine motor power
|
10HP
|
20HP
|
25HP
|
|
Wire diameter specification
|
φ0.5-2.0
|
φ5.0-5.0
|
φ0.5-6.0
|
|
Temperature control
|
6 sections
|
6 sections
|
6 sections
|
|
Cooling system
|
U Type
|
U Type
|
U Type
|
|
Towing power
|
3HP
|
3HP
|
3HP
|
|
Preserve line type
|
Level way
|
Level way
|
Level way
|
|
Preserve length (M)
|
200
|
200
|
200
|
|
Put line speed (M/min)
|
MAX500
|
MAX400
|
MAX300
|
|
Take-up line type
|
Take-up line type
|
Axial/bunch packaging
|
Axial/bunch packaging
|
|
Take-up line axis
|
PN500-630
|
PN500-630
|
PN500-630
|
|
Electrical control
|
Frequency Inverter+ PLC
|
Frequency Inverter+ PLC
|
Frequency Inverter+ PLC
|
• Technical data are subject to change without any prior notice.
• If more information or inquires, please feel free to click "Contact Us" or send us email: sales@hagsin.com
|
