Electric Power Cable Extrusion Equipment

Electric Power Cable Extrusion Equipment
Model Number: HGS65-150E
Brand: HAGSIN
Place of Origin: CHINA
Use: For cable extrusion
Packaging: Standard Export Packaging
Minimum Order Quantity: 1 set
FOB Port: FOB Shenzhen / Shanghai
Delivery Time: 30 - 75days
Payment Methods: T/T / Western Union / Sight L/C
Supply Capacity: 20-30sets/month
 Chat  View Contact Details
Product Description

Electric Power Cable Extrusion Equipment “Wire Extruder” Application】:

Be suitable for PVC, PE and other conventional plastic extrusion, mainly for power cords, power cable extrusion production.



Electric Power Cable Extrusion Equipment “Cable Extruding Machine” Structure of Equipment】:

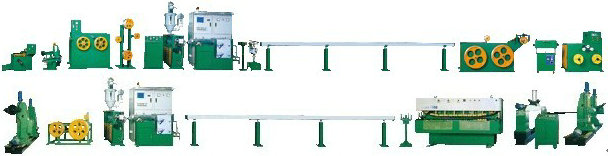

Composed of the non-axis line, straightening platform, host, master cabinet, sink, wheel tractor (tracked tractor), spark machine, no shaft-up Machine, and so on



Electric Power Cable Extrusion Equipment “Wire Extrusion Machine” Technique Specifications】:

Machinery type

HGS-65

HGS-70

HGS-80

HGS-90

HGS-120

HGS-150

Pay-off line type

Dual axis

Dual axis

Dual axis

Dual axis/

Max axis

Max axis

Max axis

Pay-off line axis

500-630mm

500-630mm

500-630mm

630-1200mm

1600-2000mm

2000-2500mm

Screw diameter

φ65

φ70

φ80

φ90

φ120

φ150

Screw scale length/diameter

251

251

251

251

251

251

Extrusions capacity kg/h

120

140

180

230

380

500

Main machine motor power

25HP

30HP

40HP

60HP

70HP

100HP

Wire diameter specification

φ1.0-10

Φ2.0-15

Φ3.0-25

Φ5.0-35

Φ12-40

Φ15-120

Temperature control

7 sections

7 sections

8 sections

8 sections

8 sections

8 sections

Cooling system

U Type

U Type

U Type

U Type

U Type

U Type

Towing power

5HP

5HP

7.5HP

7.5HP

10HP

15HP

Preserve line type

Level way

Level way

Level way

Level way

-

-

Preserve length (M)

200

200

200

200

-

-

Put line speed (M/min)

MAX400

MAX400

MAX300

MAX200

MAX100

MAX100

Take-up line type

Dual axis/

Max axis

Dual axis/

Max axis

Max axis

Max axis

Max axis

Max axis

Take-up line axis

500-630mm

Bigger Image
Electric Power Cable Extrusion Equipment
Electric Power Cable Extrusion Equipment
