HDMI Vertical Type Single Twister Machine

HDMI Vertical Type Single Twister Machine
Model Number: HGS400T
Brand: HAGSIN
Place of Origin: CHINA
Use: For cable twisting
Packaging: Standard Export Packaging
Minimum Order Quantity: 1 set
FOB Port: FOB Shenzhen / Shanghai
Delivery Time: 20 - 35 days
Payment Methods: T/T / Western Union / Sight L/C
Supply Capacity: 25 - 35 sets/month
 Chat  View Contact Details
Product Description

HDMI Vertical Type Single Twister Machine “Single Twisting Machine” Application】:

Applied in HDMI, DVI, USB 3.0 1394 core line with a twisted and synchronous wrapping.



HDMI Vertical Type Single Twister Machine “Single Twisting Machine” Structure of Equipment】:

2 +1 initiative to put the first line of + high-frequency spark machine (optional) + package to take the lead (two-headed) +400 Vertical single stranding machine



HDMI Vertical Type Single Twister Machine “Twisting Machine” Technique Feature】:

High sensitivity of the active pay-off, digital display with adjustable tension control and stability, vertical single New Zealand, and the income of the twisted line, the synchronization is complete package belt, and can be equipped with high-frequency spark machine in order to ensure that the post-strand cable quality is stable.



HDMI Vertical Type Single Twister Machine “Twisting Machine” Technique specifications】:



Machinery type

HGS-400P

Suitable for core wire

φ0.4-φ2.0mm

Max. twist OD

4.0mm

Twist pitch range

8.5-50mm

Max. twist speed

800r/min600r/min

Pay off bobbin size

300-400mm

Take up bobbin size

400mm

Pay off power

1HP AC gear motor, with a frequency control

Take up power

380V,50HZ,1.5HP  AC gear motor, with a frequency control

Pay off tension

Taiwan imports Tension Controller

Take up tension

2.5kg magnetic clutch, and is equipped with SC-62KE tension automatic tracking device

Wrapping tension

Tension Controller + detected magnetic tension can be adjusted online

Traverse device

Double direction


Technical data are subject to change without any prior notice.
If more information or inquires, please feel free to click "Contact Us" or send us email: sales@hagsin.com

Bigger Image
HDMI Vertical Type Single Twister Machine
HDMI Vertical Type Single Twister Machine
Other products from our company

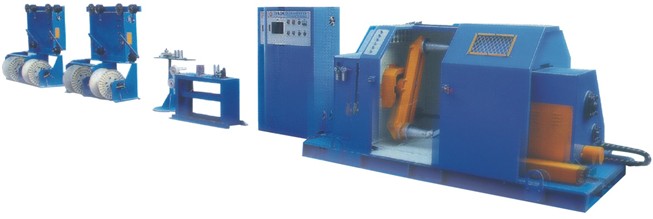

630 Cantilever Type Single Twist Buncher
630 Cantilever Type Single Twist Buncher

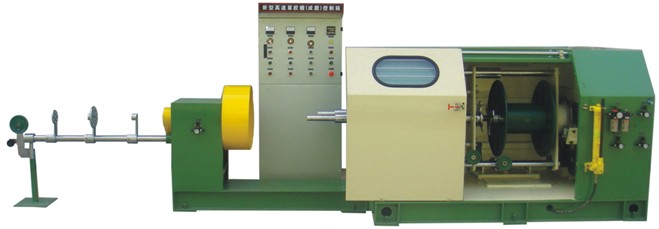

1000 Cantilever Type Single Twist Stranding Machin
1000 Cantilever Type Single Twist Stranding Machin

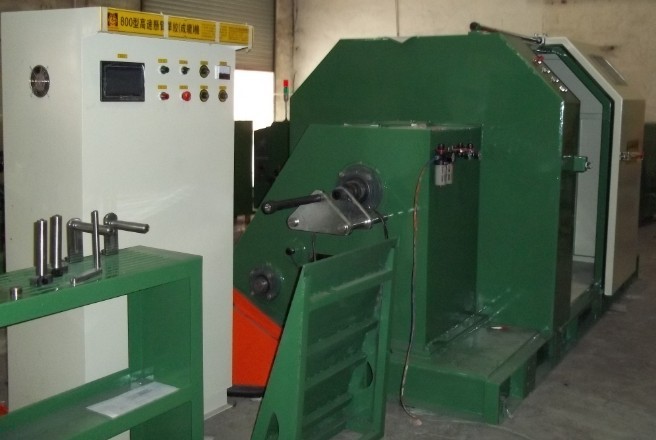

800 Cantilever Type Single Twister Machine
800 Cantilever Type Single Twister Machine

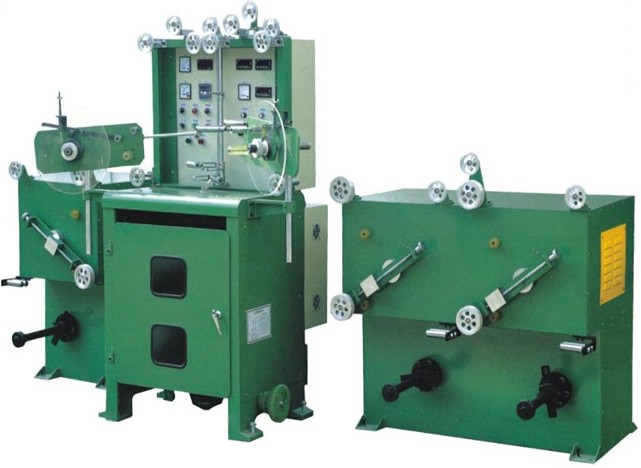

HDMI Vertical Type Single Twister Machine
