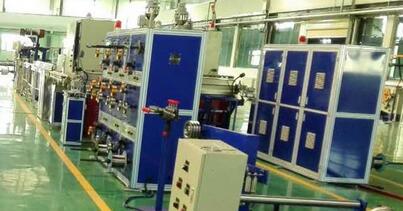

For the FTTH drop cable production line technical parameters in China as following:

- FTTH drop cable production line application:

the FTTH fiber drop cable machine mainly applied in the production of tight buffered fiber, soft optical fiber cable,FTTH terminal optical fiber cable(drop cable). The extruded sheath possesses the features of even diameter,smooth,fast speed, and low excess loss for optical fiber.
​
- FTTH drop cable production line Technical parameters:

extrusion material:   LSZH,PVC
 structure speed     Max.150m/min
production speed     Max.100m/min(LSZH);120m/min(PVC) for 2.0*3.0mm FTTH
No of optical fiber pay-off reels     2 or 4 reels
Specification of optical fiber pay-off reels     25km and 50km standard optical fiber reels
Pay-off tension of optical fiber     0.4N-1.5N
Heads no of reinforcement pay-off rack     2 heads
Specification of reinforcement pay-off reels     PN400 reels and ø254×ø116×ø180×ø32 reels
reinforcement Specification     ø0.4-ø1.0
Pay-off tension of reinforcement     5N-20N
Take-up tension     5-15N
Take-up reels Specification     PN400 reel and PN600 reel(central shaft hole diameter ø 56)
excess loss after extrusion     1550nm<=0.2dB/km(single mold optical fiber)
Center height of machine     1000mm from background

if any detailed inquiry or question of FTTH terminal drop cable production line in China, be free to contact us sales@hagsin.com, we will reply you soonest.
