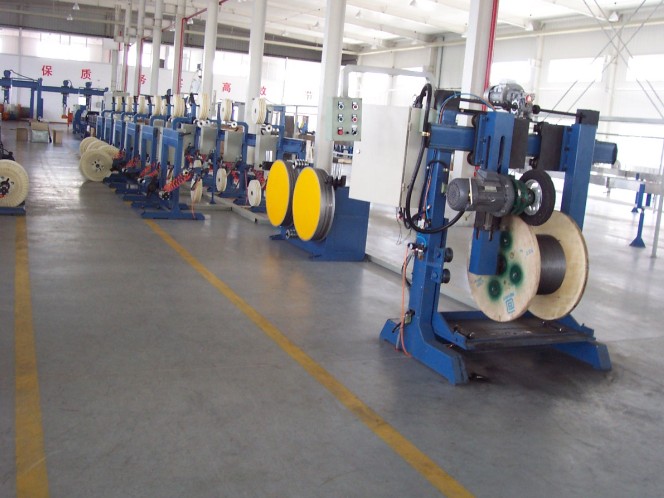

SZ stranding machine in China as outdoor fiber optic cable machine makes the mechanical and environmental properties of your loose tube for the fiber optic cable, you need technology that you can rely on. Our HAGSIN SZ stranding technology is not only stable and reliable, but also help you manufacture the flexible and durable optical cables for using in various applications

it is used to strand and cabling the loose tube oil-filling fiber-optic cables or can also be used to SZ stranding the small diameter insulated conductors.



1. Fiber-optic pay-off bobbin number: 12 bobbins

2. Fiber-optic pay-off bobbin specification ø 630 ´ø 315 ´ø 400

3. Fiber-optic pay-off tension: 1N~10N,±0.1N ~ 0.3N

4. Outlet speed:Longitudinal tubing Max 50m/min/line speed not lower than 40m/min

5. Loose tube fiber-optic diameter:1.6mm ~ 3.0mm

6. Reinforced core wire pay-off bobbin spec:  PN1000 ~ PN1600

    Reinforced core wire pay-off tension: 50N ~ 150N

7. Take up bobbin specification:ø 1250 ~ ø 1600

8. Reinforced core wire traction tension:  100N ~ 500N

9. Traction:Double wheel structure, diameter 900

10.Take-up tension:50N~150N ± 10N

11.Dimension:31m ´ 2.5m ´ 2.1m (L ´ W ´ H)

12. Weight:   Approx 15 tons

13. Total power capacity:  <35KVA

14. Stranding pitch (single direction):  80~300mm (adjustable freely)

15. Finished fiber-optic cables damping constant Da: Generally no wastage, in certain case, the  maximum value is: £0.02db/Km





1. Portal hanging pay-off rack

2. Reinforce core double wheel tension device

3. 12-way fiber-optic pay-off device

4. SZ stranding and double-direction yarn packing stand

5. Grease filling device

6. Non-woven length way yarn packing device

7. Double-wheel haul-off traction

8. Take up tension control unit

9. Dragon hanging take up and trimming rack

10. Electric control cabinet

1. standard export packaging

2. machine dimension : 31m x 2.5m x 2.1m (L x W x H)

3.machine gross weight is 15 tons

4. 2 x 40 ft container for 1 units

Our Group Brife Introduction:

1. 25+ years industry experiences in manufacturing outdoor optical fiber cable machine and indoor fiber optical cable machine.
2. Supplied the Professional Customized Solutions from Manufacturing to Installation in over 30 countries.

3. Prompt & timely delivery

4. 23+ Years export experience, CE/ISO9001/7 Patents Approved.

If any inquiry of Fiber Optic Cable SZ Stranding Machine, be free to contact us business@hagsin.com
