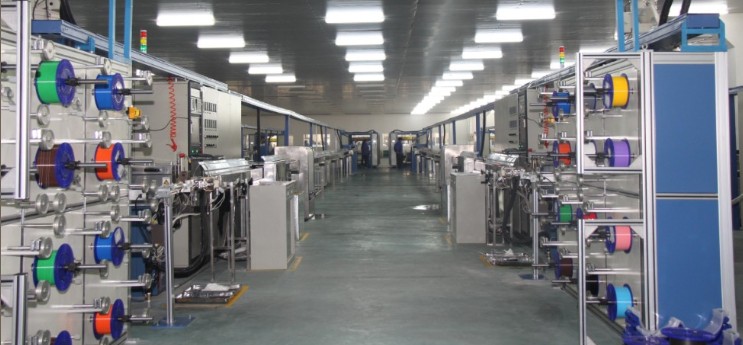

Secondary coating line manufacturer in China (HAGSIN) has a max. working speed of 350m/min. The secondary coating line is consisted of:

-24 Optical fiber pay-off

-Jelly degassing and filling device(vacuum type)

-Extruder 50mm

-Hot water trough and hot water tank

-Φ800 over-length capstan

-Cooling trough and chiller

-Blowing dryer

-Diameter gauge

-Wheel capstan dancer of over-length control

-Wheel capstan haul-off

-Take-up dancer

-Ф800mm Dual automatic take-up

-Electrical control system (PLC+ touch screen)

Secondary Coating Line Machine Specification from China:

1.12 heads motorized pay-off rack

2. Optic fiber straighter device ( movable ) (movable positioning mold support )

3.Filling machine for Thixotropic gel

4.Φ50x26D Extrusion machin

5.25KG hopper dryer and feeding

6.Electricity control panel (PLC Computer process control)

7.1.5m moving water trough

8.8m single-layer U-type fixed type cooling water trough

9. water tank

10. Shanghai ONLINE laser diameter gauge(single type)

11.Φ630 double-wheels capstan

12.12m horizontal tension wire accumulator

13. PN400~630 double-shaft take-up machine
