Top Brand Electric Wire and Cable Machine Manufacturer in China Named HAGSIN Cable Extrusion Line (sales@hagsin.com) as the Cable Sheathing Extrusion Line Manufacturer in China including: Power Cable Extrusion Equipment, Wire Extruder, Building Cable Jacket Extrusion Line, Cable Sheathing Extruder Line, Teflon Cable Sheathing Machine, Computer Cable Extrusion Equipment, Rubber Vulcanization Extrusion Equipment, Chemical Foaming Extrusion Line, Physical Foaming Extrusion Line, Strap Extruder Machine, PVC Pipe Heat-shrink Tube Extrusion Line from professional manufacturer HAGSIN.

In order to append and respond to the diverse requirements of honorable clients, Top Brand Wire and Cable Machine Manufacturer in China HAGSIN Cable Extrusion Line (sales@hagsin.com) as the Cable Sheathing Extrusion Line Manufacturer are able to offer Extruding Machines. The offered range of extruding machines is made utilizing high grade raw material and innovative techniques in complete adherence with the international quality norms. Furthermore, the offered range of extruding machines is available with conveyor and wire feeder so as to ensure cleaning and printing functions.

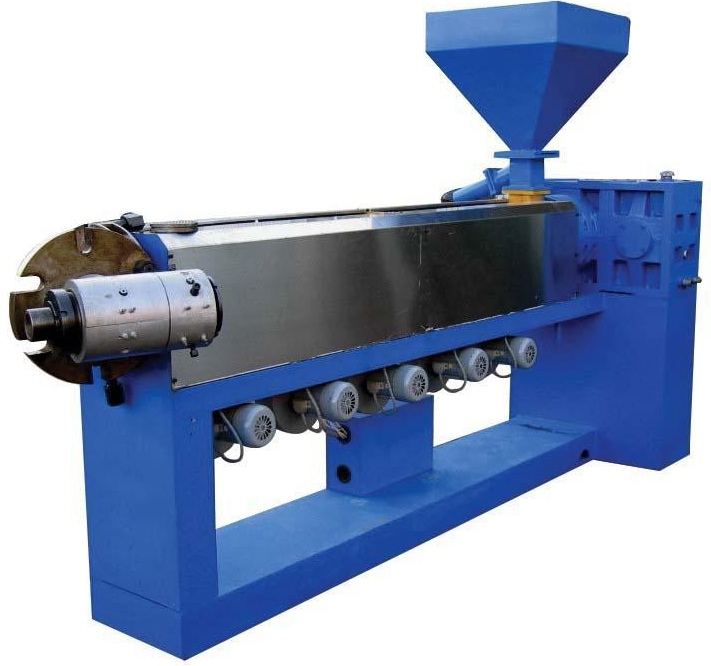

-We are readily engaged in delivering Cable Extruder to our clients. The offered range of cable extruder is made utilizing high grade raw material and innovative techniques in strict compliance with the international quality norms. Along with this, the offered range of cable extruder is ideally used for number of material such as PVC, PE, XLPE, PP, HDPE and allied.



Cable Extrusion Line/ Cable Sheathing Machine / Cable Extruding Line Features:

-Available in either a fixed or mobile version

- High output with special designed screws

-Robust construction

- Easy to operate

-Hardened screw/barrel also in bimetallic

-Helical gearbox

-Oil Cooling system in Screw and air cooling / water cooling on barrel

-AC/DC drive as per requirements

-PLC based panels

(1) Cable Extrusion Line/ Cable Sheathing Machine / Cable Extruding Line Equipment application:

Suitable for the extrusion of PVC, PE and other plastic material, mainly applied in the insulation or sheath extrusion of auto cable, cat 5, 6, 7, power cable, data cable, building wire, electric wire. Etc. The changed screw is suitable for extrusion of low smoke halogen free, nylon and other plastic material.



(2) Cable Extrusion Line/ Cable Sheathing Machine / Cable Extruding Line TECHNICAL PARAMETER:

- Process material: PVC/XLPE

- Process solution: Single layer/ color stripping

- Conductor section: 0.75mm2 to 10mm2 (single core) Or up to 4 X 6 mm2 multi core cable

- Insulation thickness: 0.5mm---1.5mm

- Size after insulation: 1.5mm---15mm

- Linear speed: Max. 450m/min (based on the cable diameter)

- Line axis height: 1000mm

- Machine color: Based on customer's requirement

- Machine direction: Based on customer's requirement

- Power: 3P/ 380V / 50Hz

- Total line length: About 30 m



(3) Cable Extrusion Line/ Cable Sheathing Machine / Cable Extruding Line MAIN PARTS FUNCTION:

1. Inverter: The speed can be changed from zero to max

2. Pay-off tension: Control automatically by electricity

3. Take-up machine uses Polish rod, transverse and distance can be adjusted by plain shaft.

4. Machine center height: 1 meter

5. Diameter of screw: 70mm, L/D of screw: 26/1. Material: 38 CrMoAiA,

6. The surface of screw is carburized and quenched, electroplated with hard cr.

7. Inside diameter of screw tube: 70mm. Material: 38 CrMoAiA,

8. The surface is carburized and quenched.

9. The material of insulation are PVC, XLPE, LSHF, PE, PP, TPEE, NYLON

10. Production direction: Pay-off on the left. Take-up on the right, as Customer's requirement

11. Color of production line is light blue(automobile finish ), safe cover is yellow OR customer's requirement

12. PROMOT SWITCH counter, set length freely.

13. Automatically stop: When the counter has reached to your desired length, the Take up will stop automatically, if wire breaks abnormal and self-actuating brake.



Warmly welcome your inquiry: sales@hagsin.com / www.hagsin.com
