FTTH Terminal Optical Fiber Drop Cable Equipment

FTTH Terminal Optical Fiber Drop Cable Equipment
Model Number: HGS-FTTH
Brand: HAGSIN
Place of Origin: CHINA
Use: FTTH Terminal Optical Fiber Drop Cable
Packaging: Standard Export Packaging
Minimum Order Quantity: 1 set
FOB Port: FOB Shenzhen / Shanghai
Delivery Time: 30 - 75 days
Payment Methods: T/T / Western Union / Sight L/C
Supply Capacity: 15 - 25 sets/month
 Chat  View Contact Details
Product Description

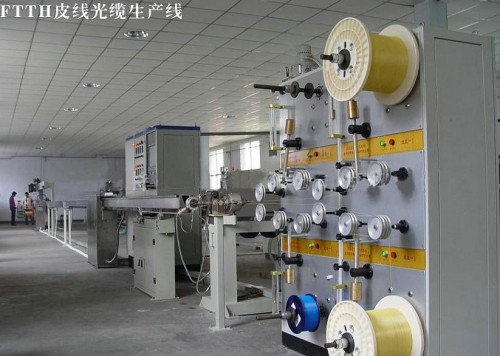

FTTH Terminal Optical Fiber Drop Cable Equipment “FTTH optical cable production line” Application】:



The optical fiber drop cable equipment production line in China is mainly applied in the production of tight loose tube optical fiber, single and double-core soft optical cable, FTTH terminal optical cable, the extruded sheath with the feature of even diameter, smooth, high speed and low extra loss of optical fiber. The production line is suitable for the extrusion of LSZH, PVC material, etc.



Single & Double-core optical cable “FTTH optical cable production line” Structure of Equipment】:



1. Double-line optical fiber pay-off rack

2. Double-line tight optical fiber pay-off rack

3. HTJS45/Plastic Extruder

4. Warm water Trough

5. Warm water tank

6. Cooling Water Trough

7. Cooling Water Tank

8. Dryer

9. Double-direction diameter gauge

10. 630 single wheel haul-off machine

11. Level wire-storage device

12. Double-bobbin take-up device

13. Meter Counter

14. Ink Printer machine (can be optional)
15. Electric control system

Technical data are subject to change without any prior notice.
If more information or inquires, please feel free to click "Contact Us" or send us email: sales@hagsin.com

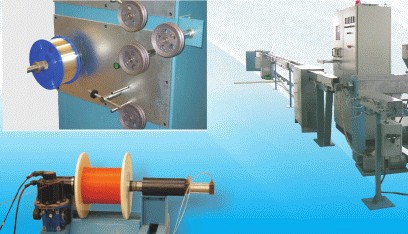

Bigger Image
FTTH Terminal Optical Fiber Drop Cable Equipment
FTTH Terminal Optical Fiber Drop Cable Equipment
Other products from our company

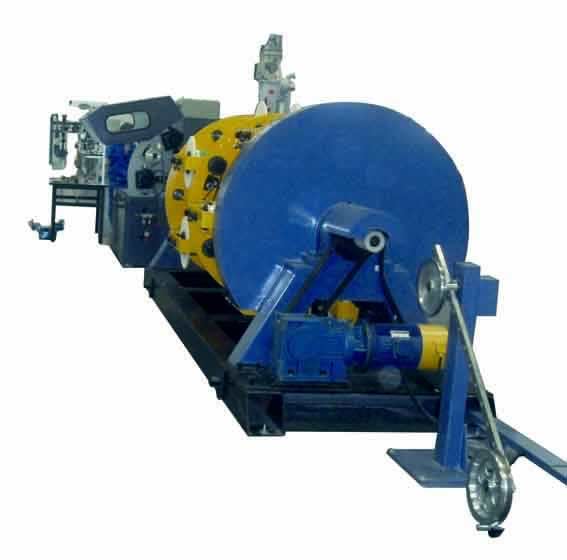

Multi-core Optical Cable Production Line with 12-reel Planetary Stranding Machine
