Premium Optical Fiber Aramid Yarn Stranding Machine in China - HAGSIN - Top Professional Fiber Optic Cable Machine Manufacturer
2017-04-14

The Aramid Yarn Stranding Machine device is mainly used to strand the armouring layer around the surface of the nonmetallic optical cable. The device is consist of 24 yarns pay-off, tension controller, stranding unit, Pneumatic brake, electrical control cabinet in China.

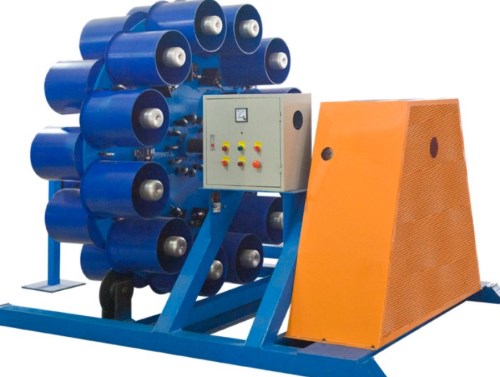

Aramid Yarn Stranding Machine in China

The pay-off unit of aramid yarn stranding machine consist of 24 units, which are distributed symmetrically on both sides of the stranding reel. Each unit is equipped with a Mitsubishi magnetic powder brake. Pay-off tension can be adjusted to desire tension by changing voltage of magnetic powder brake when machine will rotate.

Aramid Yarn Stranding Machine in China from HAGSIN GROUP

Numbers of the device

2sets

Central bore

Min 40mm

Stranding pitch

100~1000mm

Height of the center

1000mm

Outdoor Fiber Optic Cable Machine

Yes



Warmly welcome your inquiry to us: business@hagsin.com for Aramid Yarn Stranding Machine in China
